產品用途

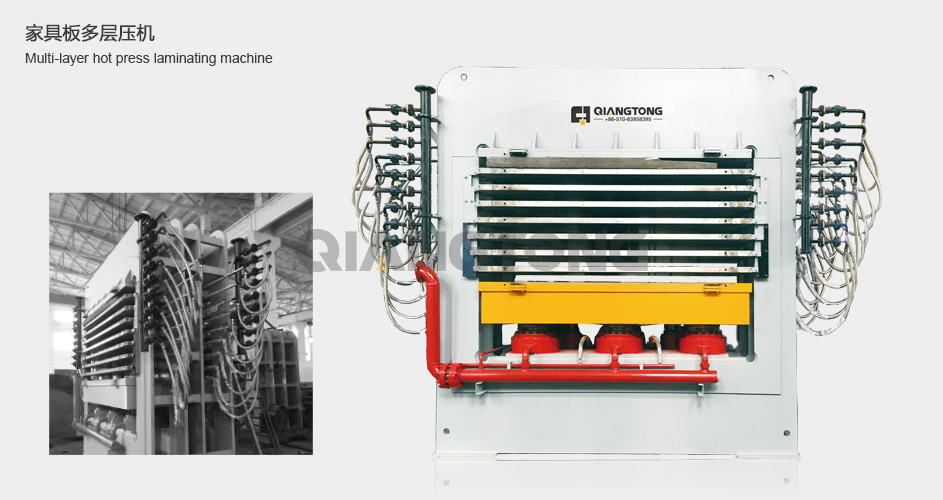

主要適用于細木工板、生態板、多層膠合板的貼面生產。本機器采用板焊框架式結構，壓機機身有下固定臺、滑塊、上橫梁，多層壓板組成，具有獨特的動力結構和電氣系統，可實現電動調整、半自動兩種操作方式。
幅面尺寸Laminates Size：4x8 尺feet（1220x2440mm） 請點擊下方型號查看壓機參數
壓機參數表：4‘X8’
| 型號?Model |
ML900T48-M8 |
ML900T48-M9 |
ML900T48-M10 |
| 層數?Openning?Layers |
8 |
9 |
10 |
| 額定壓力?Norminal?Pressure?(KN) |
9000 |
9000 |
9000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
30.2 |
30.2 |
30.2 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ220x8 |
Φ220x8 |
Φ220x8 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ100x2 |
Φ100x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
800 |
900 |
1000 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x50 |
1400x2600x50 |
1400x2600x50 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
40x4 |
40x4 |
40x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
200,000 |
230,000 |
250,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
7.5+18.5 |
7.5+18.5 |
7.5+18.5 |
| 設備尺寸?Overall?Dimension?(m) |
3.6*1.5*3.7 |
3.6*1.5*3.9 |
3.6*1.5*3.9 |
| 設備凈重?Net?Weight?of?Line?(tons) |
38 |
40 |
42 |
壓機參數表：4‘X8’
| 型號?Model |
ML1200T48-M8 |
ML1200T48-M10 |
ML1200T48-M12 |
| 層數?Openning?Layers |
8 |
10 |
12 |
| 額定壓力?Norminal?Pressure?(KN) |
12000 |
12000 |
12000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
40.3 |
40.3 |
40.3 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ280x8 |
Φ280x8 |
Φ280x8 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ100x2 |
Φ120x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
800 |
1000 |
1200 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x50 |
1400x2600x50 |
1400x2600x50 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
50x4 |
50x4 |
50x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
200,000 |
230,000 |
250,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
7.5+18.5 |
7.5+18.5 |
7.5+18.5 |
| 設備尺寸?Overall?Dimension?(m) |
3.6*1.5*3.8 |
3.6*1.5*4.1 |
3.6x1.5x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
42 |
46 |
48 |
壓機參數表：4‘X8’
| 型號?Model |
ML1400T48-M8 |
ML1400T48-M9 |
ML1400T48-M10 |
| 層數?Openning?Layers |
8 |
9 |
9 |
| 額定壓力?Norminal?Pressure?(KN) |
14000 |
14000 |
14000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
47 |
47 |
47 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ300x8 |
Φ300x8 |
Φ300x8 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ100x2 |
Φ100x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
800 |
900 |
1000 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x50 |
1400x2600x50 |
1400x2600x50 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
50x4 |
50x4 |
50x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
200,000 |
230,000 |
250,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
7.5+18.5 |
7.5+18.5 |
7.5+18.5 |
| 設備尺寸?Overall?Dimension?(m) |
3.6*1.5*3.9 |
3.6*1.5*4.1 |
3.6*1.5*4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
44 |
46 |
48 |
