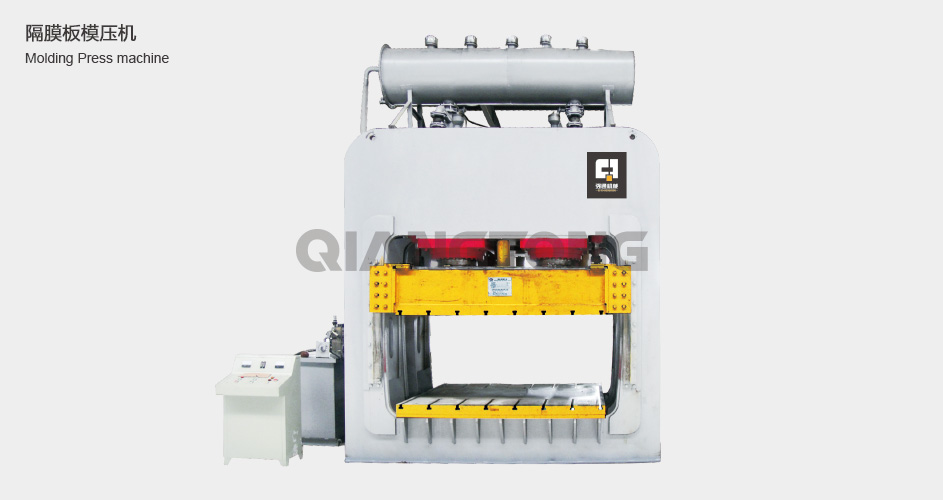

隔膜板模壓機
產品用途
強通生產的400-600噸系列冷壓機主要用于膠合板的冷壓，以及各種膠水粘合材料的定性。
壓機參數表| 型號?Model | MY-500 | MY-1500 | MY-1700 | MY-2500 |
| 最大壓力?Max.pressure?(kn) | 5000 | 15000 | 17000 | 25000 |
| 開口高度??Daylight?Opening?(mm) | ≤1000 | ≤1000 | ≤1000 | ≤1000 |
| 滑塊行程?Stroke?of?slider?(mm) | ≤800 | ≤800 | ≤800 | ≤800 |
| 模具高度?Thickness?of?moulds?(mm) | ≥200 | ≥200 | ≥200 | ≥200 |
| 主油缸?Main?oil?cylinder?(mm*pcs) | Φ500x1 | Φ440x4 | Φ460x4 | Φ560x4 |
| 提升油缸?Lifting?oil?cylinder?(mm*pcs) | Φ80x4 | Φ120x4 | Φ120x4 | Φ150x4 |
| 工作臺尺寸?Working?table?size?(mm) | 1800x1800 | 2200x2200 | 2300x2600 | 2600x2600 |
| 上下工作臺平行度?Parallelism?of?working?table?(mm) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| 立板厚度?Thickness?of?frame?plate?(mm) | 50 | 60 | 65 | 80 |
| 最大油壓?Max?pressure?(Mpa) | 25 | 25 | 25 | 25 |
