產品用途

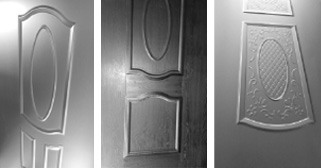

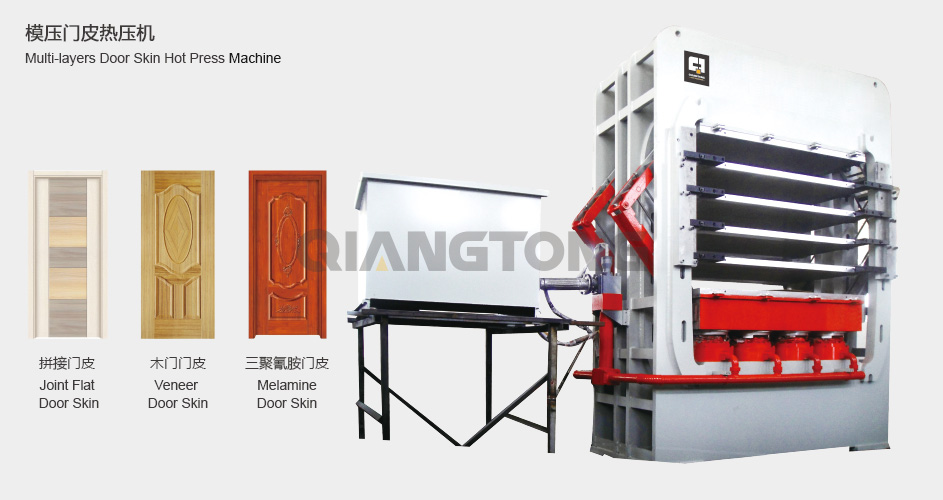

DY900-1400系列多層門壓機適用于三聚氰胺門皮，天然木皮門皮的模壓貼面成型，壓機采用彈簧式同步閉合機構，可根據生產工藝在任何位置停止（即限位控制），且停留時間可調。保壓時間以及壓力設定好之后自動控制，壓機設有手動和自動兩種工作模式，方便客戶選擇。
幅面尺寸Laminates Size：3x7 尺feet（900x2100mm） 請點擊下方型號查看壓機參數
壓機參數表：3‘X7’
| 型號?Model |
DY900T37-M3 |
DY900T37-M4 |
DY900T37-M5 |
| 層數?Openning?Layers |
3 |
4 |
5 |
| 額定壓力?Norminal?Pressure?(KN) |
9000 |
9000 |
9000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
47.6 |
47.6 |
47.6 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ280x6 |
Φ280x6 |
Φ280x6 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ100x2 |
Φ100x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
750 |
1000 |
1250 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1150x2250x60 |
1150x2250x60 |
1150x2250x60 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
40x4 |
40x4 |
40x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
90,000 |
120,000 |
150,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
22 |
22 |
22 |
| 設備尺寸?Overall?Dimension?(m) |
3.2x1.5x3.7 |
3.2x1.5x4 |
3.2x1.5x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
30 |
33 |
36 |
壓機參數表：3‘X7’
| 型號?Model |
DY1200T37-M3 |
DY1200T37-M4 |
DY1200T37-M5 |
| 層數?Openning?Layers |
3 |
4 |
5 |
| 額定壓力?Norminal?Pressure?(KN) |
12000 |
12000 |
12000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
63.5 |
63.5 |
63.5 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ280x8 |
Φ280x8 |
Φ280x8 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ100x2 |
Φ120x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
750 |
1000 |
1250 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1150x2250x60 |
1150x2250x60 |
1150x2250x60 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
50x4 |
50x4 |
50x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
90,000 |
120,000 |
150,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
22 |
22 |
22 |
| 設備尺寸?Overall?Dimension?(m) |
3.5x1.5x3.7 |
3.5x1.5x4 |
3.5x1.5x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
35 |
38 |
41 |
幅面尺寸Laminates Size：4x8 尺feet（1220x2440mm） 請點擊下方型號查看壓機參數
壓機參數表：4‘X8’
| 型號?Model |
DY900T48-M3 |
DY900T48-M4 |
DY900T48-M5 |
| 層數?Openning?Layers |
3 |
4 |
5 |
| 額定壓力?Norminal?Pressure?(KN) |
9000 |
9000 |
9000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
32.2 |
32.2 |
32.2 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ280x6 |
Φ280x6 |
Φ280x6 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ100x2 |
Φ120x2 |
Φ120x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
750 |
1000 |
1250 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x60 |
1400x2600x60 |
1400x2600x60 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
40x4 |
40x4 |
40x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
90,000 |
120,000 |
150,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
22 |
22 |
22 |
| 設備尺寸?Overall?Dimension?(m) |
3.8x1.6x3.7 |
3.8x1.6x4 |
3.8x1.6x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
36 |
40 |
44 |
壓機參數表：4‘X8’
| 型號?Model |
DY1200T48-M3 |
DY1200T48-M4 |
DY1200T48-M5 |
| 層數?Openning?Layers |
3 |
4 |
5 |
| 額定壓力?Norminal?Pressure?(KN) |
12000 |
12000 |
12000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
40.3 |
40.3 |
40.3 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ280x8 |
Φ280x8 |
Φ280x8 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ120x2 |
Φ120x2 |
Φ120x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
750 |
1000 |
1250 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x60 |
1400x2600x60 |
1400x2600x60 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
50x4 |
50x4 |
50x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
90,000 |
120,000 |
150,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
22 |
22 |
22 |
| 設備尺寸?Overall?Dimension?(m) |
3.8x1.6x3.7 |
3.8x1.6x4 |
3.8x1.6x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
42 |
47 |
52 |
壓機參數表：4‘X8’
| 型號?Model |
DY1400T48-M3 |
DY1400T48-M4 |
DY1400T48-M5 |
| 層數?Openning?Layers |
3 |
4 |
5 |
| 額定壓力?Norminal?Pressure?(KN) |
14000 |
14000 |
14000 |
| 單位壓力?Unit?Pressure?(kg/cm2) |
47.1 |
47.1 |
47.1 |
| 主油缸參數?Main?Oil?Cylinder?(mmxpcs) |
Φ340x6 |
Φ340x6 |
Φ340x6 |
| 提升油缸參數?Lift?Oil?Cylinder?(mmxpcs) |
Φ120x2 |
Φ120x2 |
Φ120x2 |
| 油缸行程?Oil?Cylinder?Stroke?(mm) |
750 |
1000 |
1250 |
| 熱壓板參數?Hot?Platen?Size?(mm) |
1400x2600x60 |
1400x2600x60 |
1400x2600x60 |
| 立板參數?Thickness?of?Frame?(mmxpcs) |
60x4 |
60x4 |
60x4 |
| 熱能消耗?Heat?Consumption?(kcal/h) |
90,000 |
120,000 |
150,000 |
| 主電機功率?Pumping?Motor?Power?(kW) |
22 |
22 |
22 |
| 設備尺寸?Overall?Dimension?(m) |
3.8x1.6x3.7 |
3.8x1.6x4 |
3.8x1.6x4.3 |
| 設備凈重?Net?Weight?of?Line?(tons) |
44 |
52 |
56 |
